GUITAR MACHINE HEADS
Request a quote → S-1032
S-1032
S-1032
Loading 3D model…
Loading 3D model…
Description

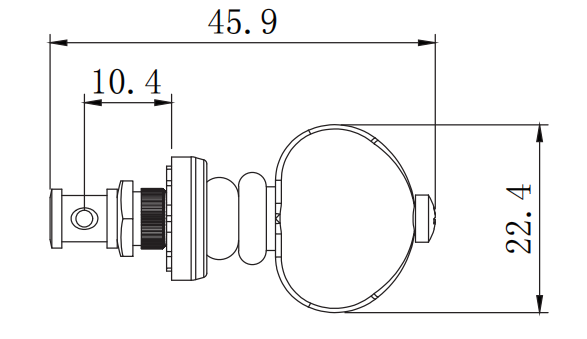

S-1032 side-profile reference drawing of a guitar machine head assembly (post, collar, gear housing, and button).
Tuning machine specs
- Mount style Side-profile reference (post-to-button)
Hardware
- Material Zinc alloy / brass (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Side-profile dimensioned drawing
- String post with hole
- Hex nut and knurled collar
- Bean-shaped tuner button
About measurements
- Mount hole spacing
-
Per S-1032.png side profile: overall length 45.9 mm; string hole 10.4 mm from post tip; tuner button height 22.4 mm.
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
