MANDOLIN PARTS
Request a quote → TA-008
TA-008
TA-008
Loading 3D model…
Loading 3D model…
Description

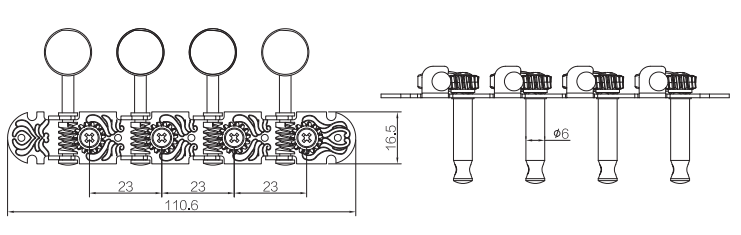

TA-008 4-on-a-plate mandolin tuners, 110.6 × 16.5 mm engraved plate, φ6 mm posts on 23 mm centers.
Tuning machine specs
- Post diameter φ6 mm
- Plate width 16.5 mm (0.65 in)
- Plate length 110.6 mm (4.354 in)
- Mount style 4-on-a-plate open gear; oval buttons
- Post spacing 23 mm (0.906 in)
- Reference Scrollwork engraved plate; post spacing 23 mm.
Hardware
- Material Zinc alloy / brass (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
23 mm (0.906 in)
Center-to-center distance between mounting holes on the bridge plate.
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
