Description

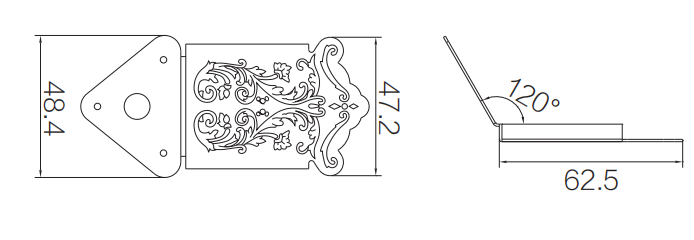

TB-001 mandolin tailpiece, 48.4 mm mount plate, 47.2 mm body width, 62.5 mm profile length at 120° bend.
Tailpiece specs
- String count 8-string
- Overall length 62.5 mm (2.461 in)
- Overall width 48.4 mm (1.906 in)
- Bottom width 47.2 mm (1.858 in)
- Mount pattern Triangular mount plate with three screw holes and center through-hole; ornate engraved cover.
Hardware
- Material Cast / stamped metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Triangular mount plate with three screw holes and center through-hole; ornate engraved cover.
Center-to-center distance between mounting holes on the bridge plate.
