Description

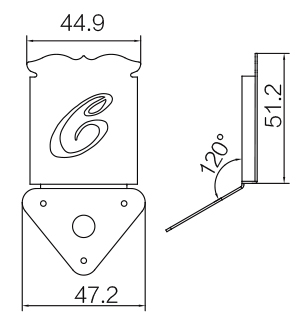

TB-003 mandolin tailpiece with stylized G cover, 44.9 × 51.2 mm face, 47.2 mm base at 120° bend.
Tailpiece specs
- String count 8-string
- Overall length 51.2 mm (2.016 in)
- Overall width 44.9 mm (1.768 in)
- Bottom width 47.2 mm (1.858 in)
- Mount pattern Triangular base with three screw holes and center hole; 120° bend angle.
Hardware
- Material Cast / stamped metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Triangular base with three screw holes and center hole; 120° bend angle.
Center-to-center distance between mounting holes on the bridge plate.
