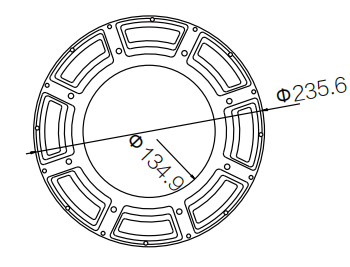

Technical drawingTE-003
Description
TE-003 banjo tone-ring flange, φ235.6 mm OD × φ134.9 mm ID with eight mount holes and pocketed rim.
Tone ring specs
- Outer diameter φ235.6 mm
- Inner diameter φ134.9 mm
- Reference Eight-fold symmetric layout; individual hole spacing not dimensioned on drawing.
Hardware
- Material Brass / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Eight trapezoidal rim pockets
- Eight small mount holes on spoke ribs
About measurements
- Mount hole spacing
-
Eight-fold symmetric layout; individual hole spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
