Description

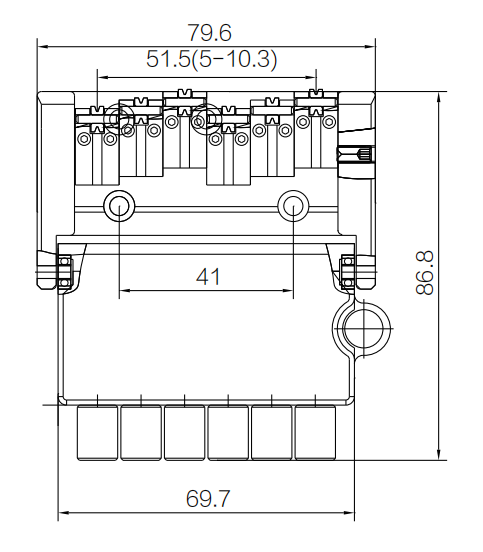

W-1002 is a 6-string headless guitar bridge with 10.3 mm spacing, 79.6 × 86.8 mm plate, 41.0 mm two-point mount spacing, and tremolo arm.
Headless bridge specs
- String count 6-string
- String spacing 10.3 mm (0.406 in)
- String spread 51.5 mm (2.028 in)
- Overall width 79.6 mm (3.134 in)
- Overall length 86.8 mm (3.417 in)
- Mount spacing 41 mm (1.614 in)
- Layout reference Two-point mount; lower tuner section 69.7 mm wide.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Six integrated fine tuners
- Two-point pivot mount
- Tremolo arm socket on right side
About measurements
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
41 mm (1.614 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
