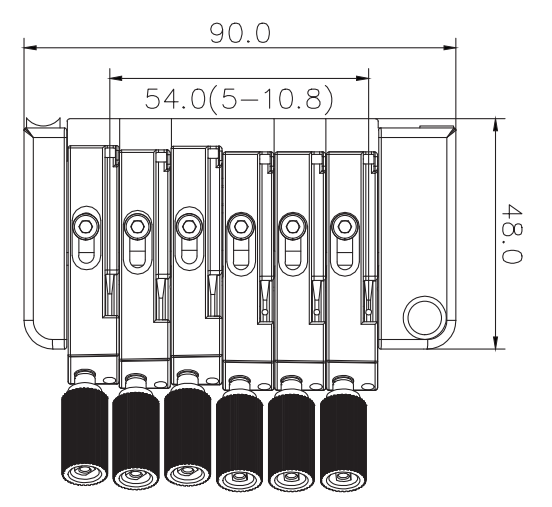

Technical drawingW-1005
Description
W-1005 is a 6-string headless guitar bridge with 10.8 mm spacing, 90.0 × 48.0 mm plate, and tremolo arm.
Headless bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Overall width 90 mm (3.543 in)
- Overall length 48 mm (1.89 in)
- Layout reference Mounting hole spacing not dimensioned on drawing.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Low-profile 48.0 mm depth plate
- Six individual saddle/tuner modules
- Tremolo arm socket on right wing
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Mounting hole spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
