Description

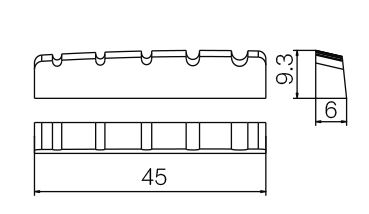

ZE-1016 is a 5-string nut, 45 mm overall length, 9.3 mm height, and 6 mm base thickness.
Nut specs
- String count 5-string
- Overall length 45 mm (1.772 in)
- Base thickness 6 mm (0.236 in)
- Overall height 9.3 mm (0.366 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 5 strings
- Curved top profile with tapered side and 6 mm-thick flat base
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
