Request a quote → ZE-1017
ZE-1017

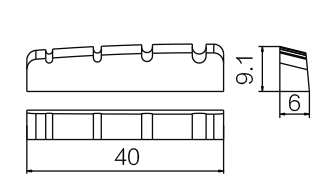

Technical drawingZE-1017
Description
ZE-1017 is a 4-string nut, 40 mm overall length, 9.1 mm height, and 6 mm base thickness.
Nut specs
- String count 4-string
- Overall length 40 mm (1.575 in)
- Base thickness 6 mm (0.236 in)
- Overall height 9.1 mm (0.358 in)
- Reference String spacing and spread not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Pre-slotted for 4 strings
- Sloped radiused top profile with 6 mm-thick flat base
About measurements
- Mount hole spacing
-
String spacing and spread not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
