Description

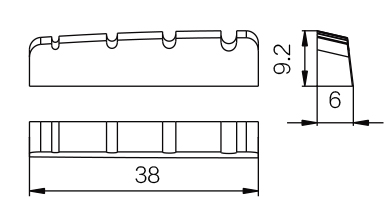

ZE-1018 4-string nut, 38 mm length, 6 mm depth, 9.2 mm height with pre-cut slots and slanted radiused top.
Nut specs
- String count 4-string
- Overall length 38 mm (1.496 in)
- Base thickness 6 mm (0.236 in)
- Overall height 9.2 mm (0.362 in)
- Reference Glue-in nut; string spacing not dimensioned on drawing.
Hardware
- Material Plastic / bone / Corian (standard material options)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Four pre-cut string slots across 38 mm width
- Slanted radiused top profile; 6 mm base thickness
About measurements
- Mount hole spacing
-
Glue-in nut; string spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
