Description

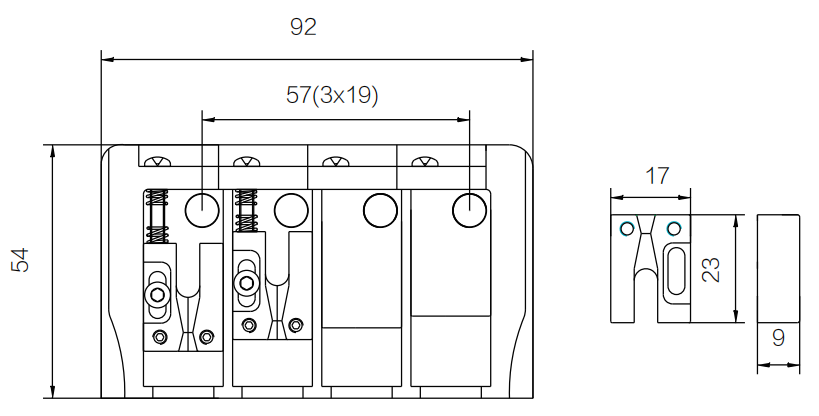

BA-1010 is a 4-string bass bridge with zinc saddles, 19 mm spacing (57 mm spread), and a 92 × 54 mm plate.
Bridge specs
- String count 4-string
- String spacing 19 mm (0.748 in)
- String spread 57 mm (2.244 in)
- Plate width 92 mm (3.622 in)
- Plate depth 54 mm (2.126 in)
- Saddle material Zinc alloy
- Saddle diameter 17 mm (0.669 in)
- Saddle height 23 mm (0.906 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 19 mm string spacing
- Block saddles with dual height screws
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
