Description

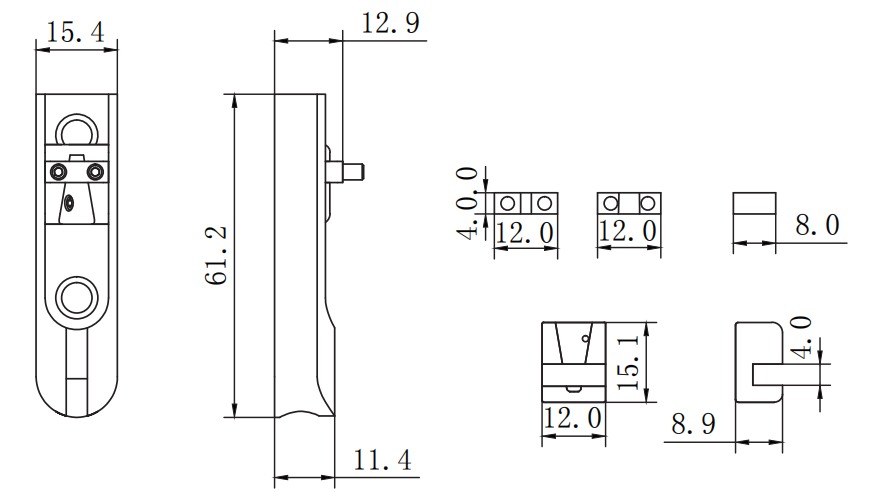

BA-1011 is a headless-style single-string bridge/tuner module, 15.4 mm wide and 61.2 mm long, for custom multi-string layouts.
Bridge specs
- Configuration Individual-string module
- Module length 61.2 mm (2.409 in)
- Module width 15.4 mm (0.606 in)
- Body height 11.4 mm (0.449 in)
- Saddle material Zinc alloy
- Saddle diameter 12 mm (0.472 in)
- Saddle height 15.1 mm (0.594 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Headless single-string module
- Compact 15.4 mm footprint
About measurements
- String spacing
-
15.4 mm (0.606 in)
Center-to-center distance between adjacent strings at the bridge.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
