Description

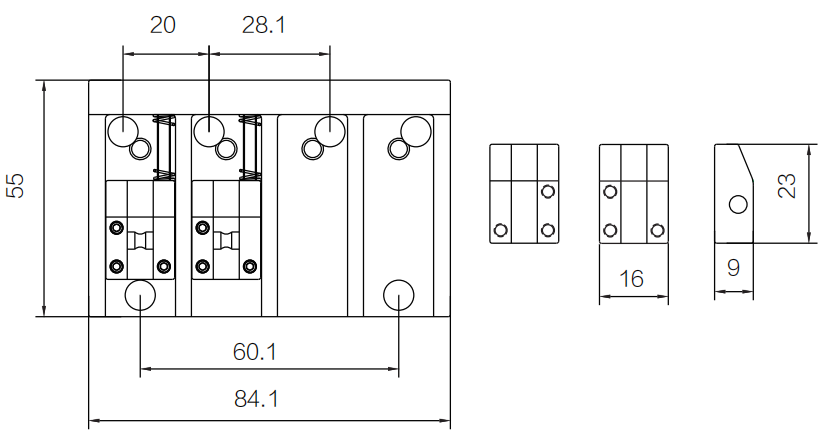

BA-1015 is a 4-string bass bridge with zinc saddles on an 84.1 × 55 mm plate. Asymmetric top hole spacing (20 mm / 28.1 mm) and 60.1 mm bottom mount spacing suit select import routes.
Bridge specs
- String count 4-string
- String spacing 20 mm (0.787 in)
- Plate width 84.1 mm (3.311 in)
- Plate depth 55 mm (2.165 in)
- Mount hole spacing 60.1 mm (2.366 in)
- Mount pattern Asymmetric top holes 20 mm and 28.1 mm pitch
- Saddle material Zinc alloy
- Saddle diameter 16 mm (0.63 in)
- Saddle height 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Asymmetric top hole layout
- 16 mm block saddles
About measurements
- String spacing
-
20 mm (0.787 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
60.1 mm (2.366 in)
Center-to-center distance between mounting holes on the bridge plate.
