BA-1017
BA-1017
Loading 3D model…
Loading 3D model…
Description
BA-1017 is a 5-string bass bridge with zinc saddles, 15 mm string spacing (60 mm spread), and an 84 × 58 mm plate.

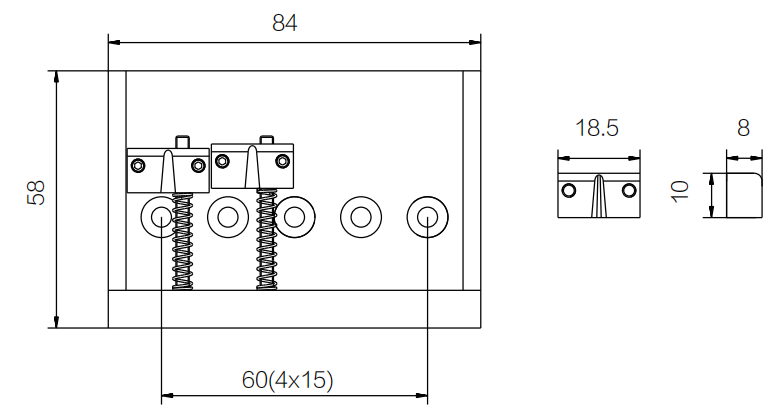

Bridge specs
- String count 5-string
- String spacing 15 mm (0.591 in)
- String spread 60 mm (2.362 in)
- Plate width 84 mm (3.307 in)
- Plate depth 58 mm (2.283 in)
- Saddle material Zinc alloy
- Saddle diameter 18.5 mm (0.728 in)
- Saddle height 10 mm (0.394 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 5-string 15 mm spacing
- Rounded saddle contact profile
About measurements
- String spacing
-
15 mm (0.591 in)
Center-to-center distance between adjacent strings at the bridge.
