Description

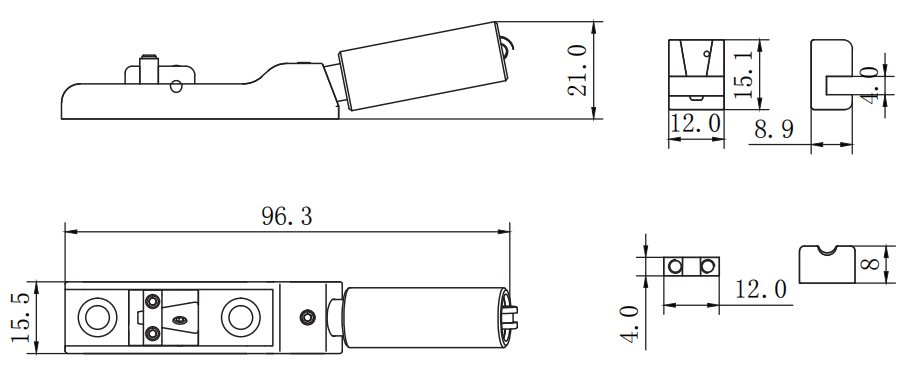

BA-1019 is a headless single-string bass bridge/tuner module, 15.5 mm wide and 96.3 mm long, with integrated tuning barrel for custom multi-string layouts.
Bridge specs
- Configuration Individual-string module
- Module length 96.3 mm (3.791 in)
- Module width 15.5 mm (0.61 in)
- Body height 21 mm (0.827 in)
- Saddle material Zinc alloy
- Saddle diameter 12 mm (0.472 in)
- Saddle height 15.1 mm (0.594 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Headless module with integrated tuner
- 96.3 mm overall length
About measurements
- String spacing
-
15.5 mm (0.61 in)
Center-to-center distance between adjacent strings at the bridge.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
