Description

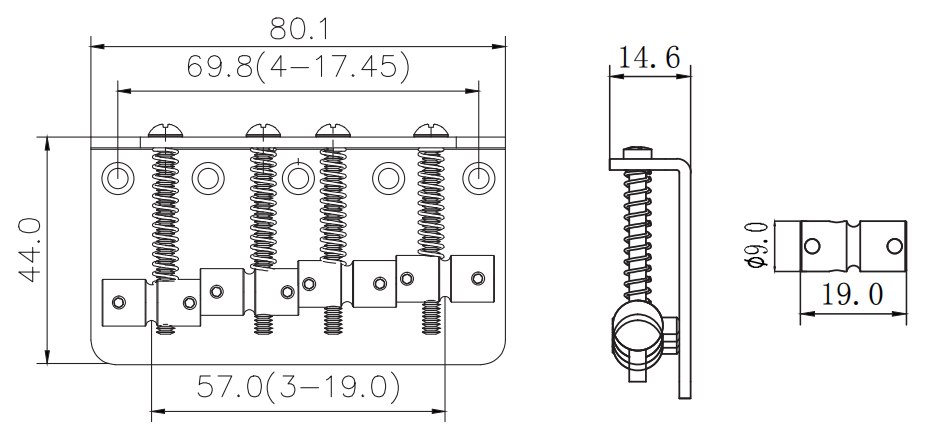

BA-1022 is a 4-string bass bridge with barrel saddles, 19 mm string spacing, and a compact 80.1 × 44.0 mm footprint for standard bass body routes. Five-screw top mounting and individual height/intonation adjustment support repeatable OEM setup.
Bridge specs
- String count 4-string
- String spacing 19 mm (0.748 in)
- String spread 57 mm (2.244 in)
- Plate width 80.1 mm (3.154 in)
- Plate depth 44 mm (1.732 in)
- Mount hole spacing 69.8 mm (2.748 in)
- Mount pattern 5 holes on 17.45 mm pitch (outer centers 69.8 mm)
- Saddle material Zinc alloy (barrel saddles)
- Saddle diameter 9 mm (0.354 in)
- Hole diameter φ4 mm (0.157 in)
- Overall height 14.6 mm (0.575 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Pre-machined base plate with five top-mount holes (φ4.0 mm, countersink φ6.2 mm)
- Barrel saddles with M3 height and intonation screws
- 19 mm (0.748 in) center-to-center string spacing
- Multiple finish options for production runs
About measurements
- String spacing
-
19 mm (0.748 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
69.8 mm (2.748 in)
Center-to-center distance between mounting holes on the bridge plate.
