BA-1024
3D previewBA-1024
Loading 3D model…
Loading 3D model…
Description

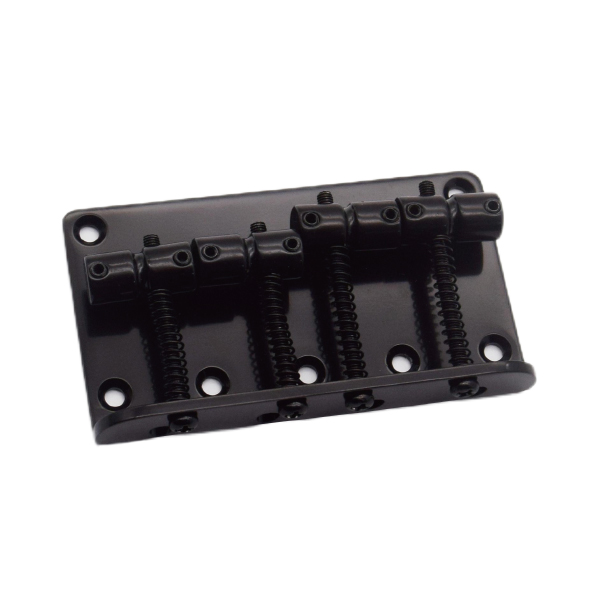

BA-1024 is a 4-string bass bridge with zinc barrel saddles, 17.5 mm string spacing (70 mm spread), and an 80 × 45.6 mm plate.
Bridge specs
- String count 4-string
- String spacing 17.5 mm (0.689 in)
- String spread 70 mm (2.756 in)
- Plate width 80 mm (3.15 in)
- Plate depth 45.6 mm (1.795 in)
- Mount hole spacing 70 mm (2.756 in)
- Mount pattern Corner mount 70 × 32 mm; top hole 9.9 mm from edge
- Saddle material Zinc alloy
- Saddle diameter 9 mm (0.354 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Zinc barrel saddles φ9 mm
- 17.5 mm string spacing
About measurements
- String spacing
-
17.5 mm (0.689 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
70 mm (2.756 in)
Center-to-center distance between mounting holes on the bridge plate.
