BATTERY COMPARTMENT
Request a quote → BC-01
BC-01

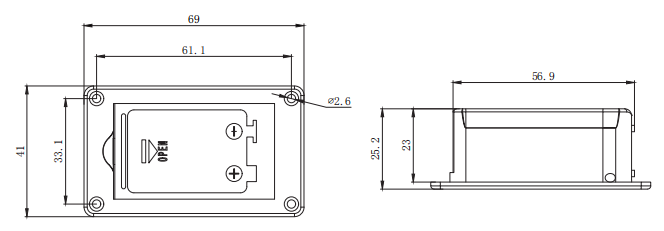

Technical drawingBC-01
Description
BC-01 is a flush-mount active bass battery box with 69 × 41 mm flange, 61.1 × 33.1 mm mount pattern, and 23 mm cavity depth.
Battery box specs
- Flange width 69 mm (2.717 in)
- Flange depth 41 mm (1.614 in)
- Mount spacing (width) 61.1 mm (2.406 in)
- Mount spacing (depth) 33.1 mm (1.303 in)
- Cavity width 56.9 mm (2.24 in)
- Cavity depth 23 mm (0.906 in)
- Overall height 25.2 mm (0.992 in)
- Mount hole diameter φ2.6 mm
Hardware
- Material Plastic housing
- Adjustment N/A
- Finish Black plastic (standard)
Features
- 9V battery door with polarity marking
- Four-corner φ2.6 mm mount
