BATTERY COMPARTMENT
Request a quote → BC-02
BC-02

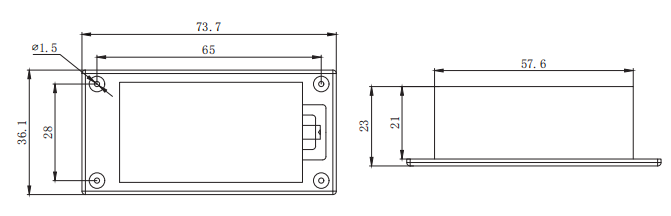

Technical drawingBC-02
Description
BC-02 is a compact battery box with 73.7 × 36.1 mm flange, 65 × 28 mm mount spacing, and 21 mm body height.
Battery box specs
- Flange width 73.7 mm (2.902 in)
- Flange depth 36.1 mm (1.421 in)
- Mount spacing (width) 65 mm (2.559 in)
- Mount spacing (depth) 28 mm (1.102 in)
- Cavity width 57.6 mm (2.268 in)
- Cavity depth 21 mm (0.827 in)
- Overall height 23 mm (0.906 in)
- Mount hole diameter φ1.5 mm
Hardware
- Material Plastic housing
- Adjustment N/A
- Finish Black plastic (standard)
Features
- Low-profile 23 mm overall height
- φ1.5 mm corner mounts
