BG-1001-A

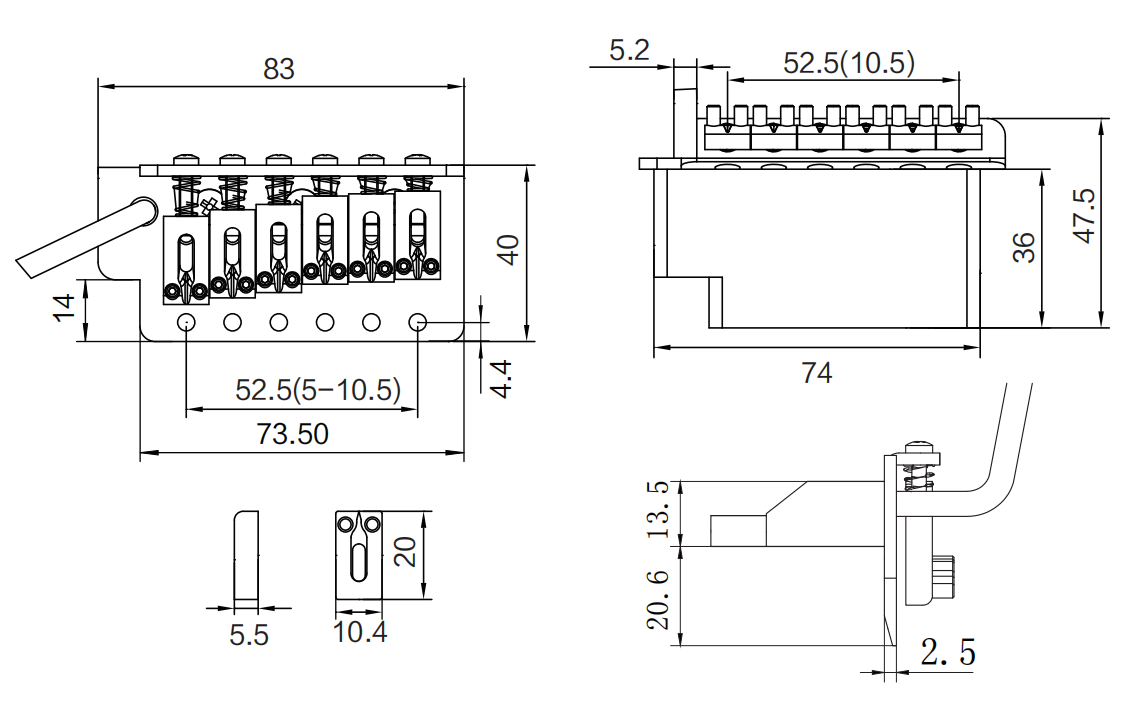

Technical drawingBG-1001-A
Description
BG-1001-A is a 6-string vintage tremolo bridge with 10.5 mm spacing, 83 × 40 mm plate, 52.5 mm six-screw mount spread, and 36 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 83 mm (3.268 in)
- Plate depth 40 mm (1.575 in)
- Mount hole spacing 52.5 mm (2.067 in)
- Mount pattern Six-screw mount; 10.5 mm hole pitch
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 20 mm (0.787 in)
- Overall height 47.5 mm (1.87 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Six-screw vintage tremolo plate
- Block saddles with 10.4 mm width
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
52.5 mm (2.067 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
