BG-1004-A

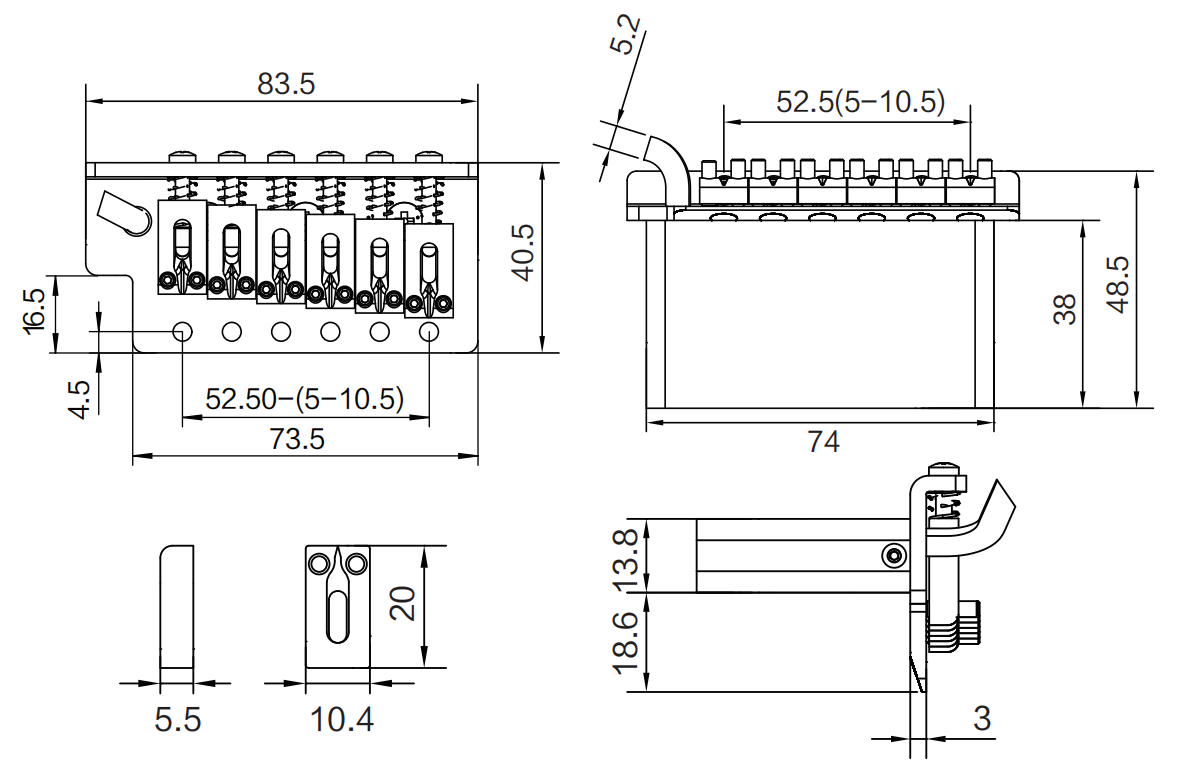

Technical drawingBG-1004-A
Description
BG-1004-A is a 6-string vintage tremolo bridge with 10.5 mm spacing, 83.5 × 40.5 mm plate, 52.5 mm six-screw mount spread, and 38 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 83.5 mm (3.287 in)
- Plate depth 40.5 mm (1.594 in)
- Mount hole spacing 52.5 mm (2.067 in)
- Mount pattern Six-screw mount; 10.5 mm hole pitch
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 20 mm (0.787 in)
- Overall height 48.5 mm (1.909 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Six-screw vintage plate layout
- 38 mm sustain block depth
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
52.5 mm (2.067 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
