BG-1005-B

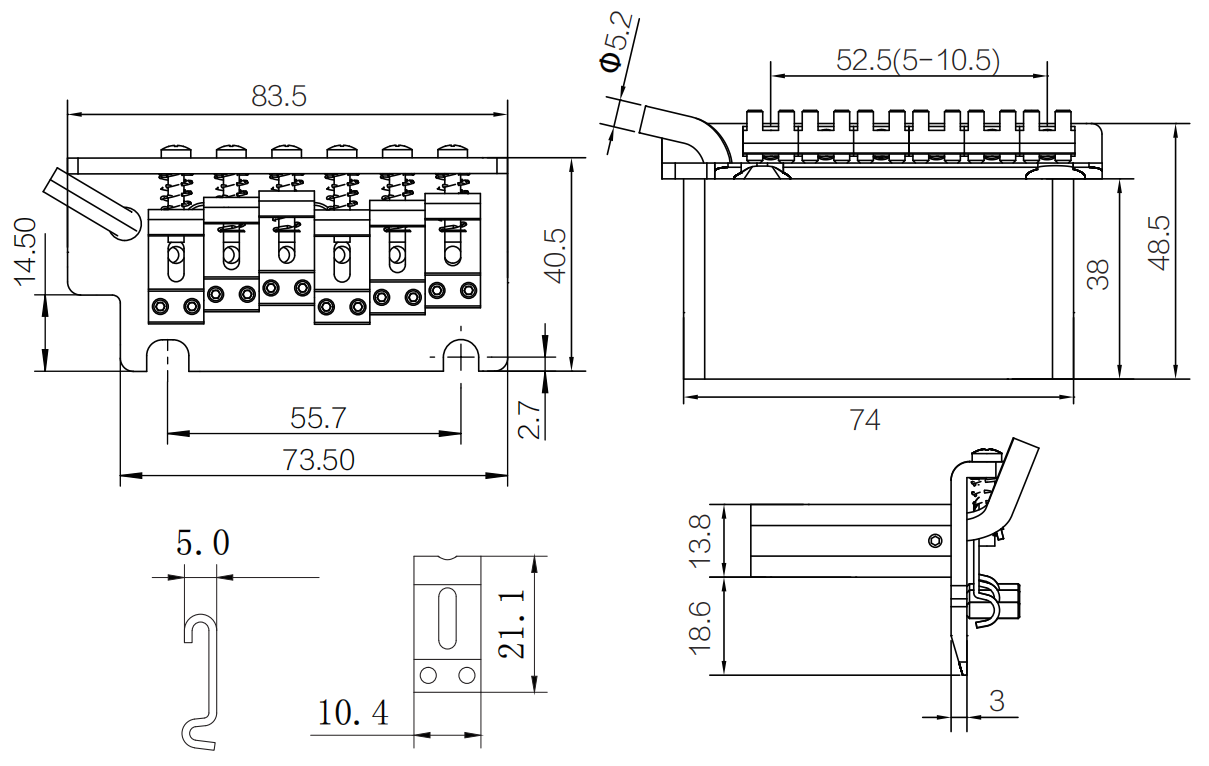

Technical drawingBG-1005-B
Description
BG-1005-B is a 6-string tremolo bridge with 10.5 mm spacing, 83.5 × 40.5 mm plate, 55.7 mm two-point mount spacing, and 38 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 83.5 mm (3.287 in)
- Plate depth 40.5 mm (1.594 in)
- Mount hole spacing 55.7 mm (2.193 in)
- Mount pattern Two-point pivot mount
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 21.1 mm (0.831 in)
- Overall height 48.5 mm (1.909 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Two-point fulcrum tremolo
- Tremolo arm socket φ5.2 mm
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
55.7 mm (2.193 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
