BG-1006-A

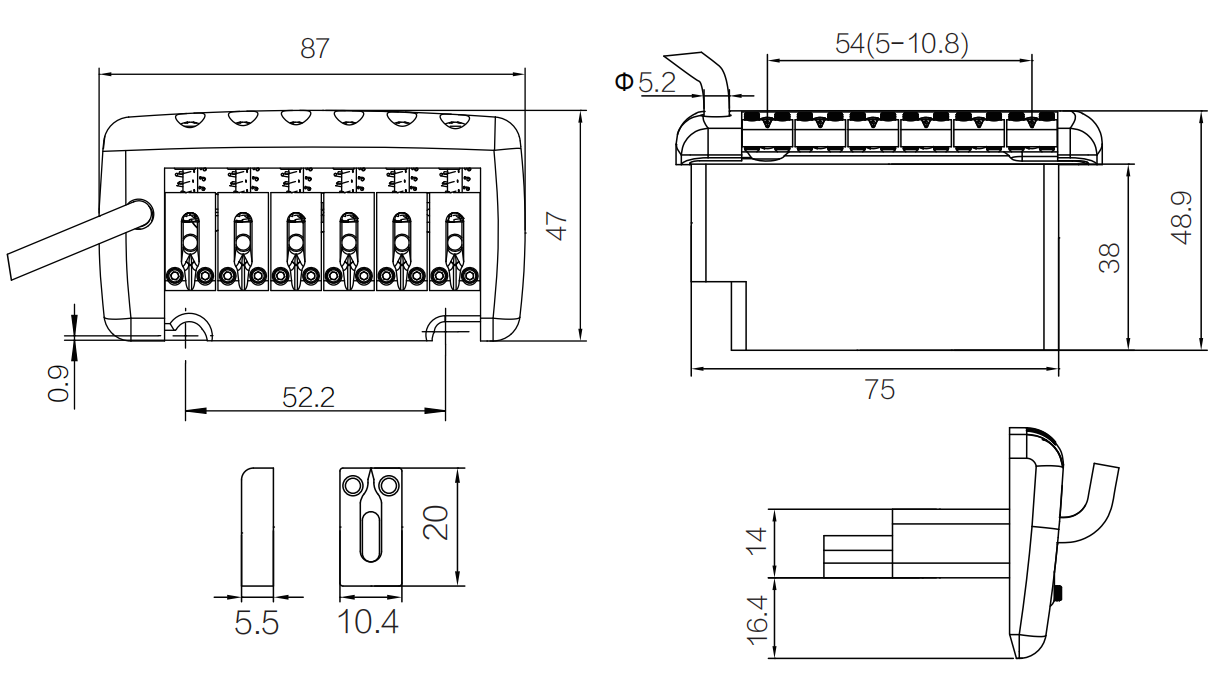

Technical drawingBG-1006-A
Description
BG-1006-A is a 6-string tremolo bridge with 10.8 mm spacing, 87 × 47 mm plate, 52.2 mm two-point mount spacing, and 38 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 87 mm (3.425 in)
- Plate depth 47 mm (1.85 in)
- Mount hole spacing 52.2 mm (2.055 in)
- Mount pattern Two-point pivot notches
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 20 mm (0.787 in)
- Overall height 48.9 mm (1.925 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 10.8 mm wider string spacing
- Tremolo arm socket φ5.2 mm
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
52.2 mm (2.055 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
