BG-1007-F

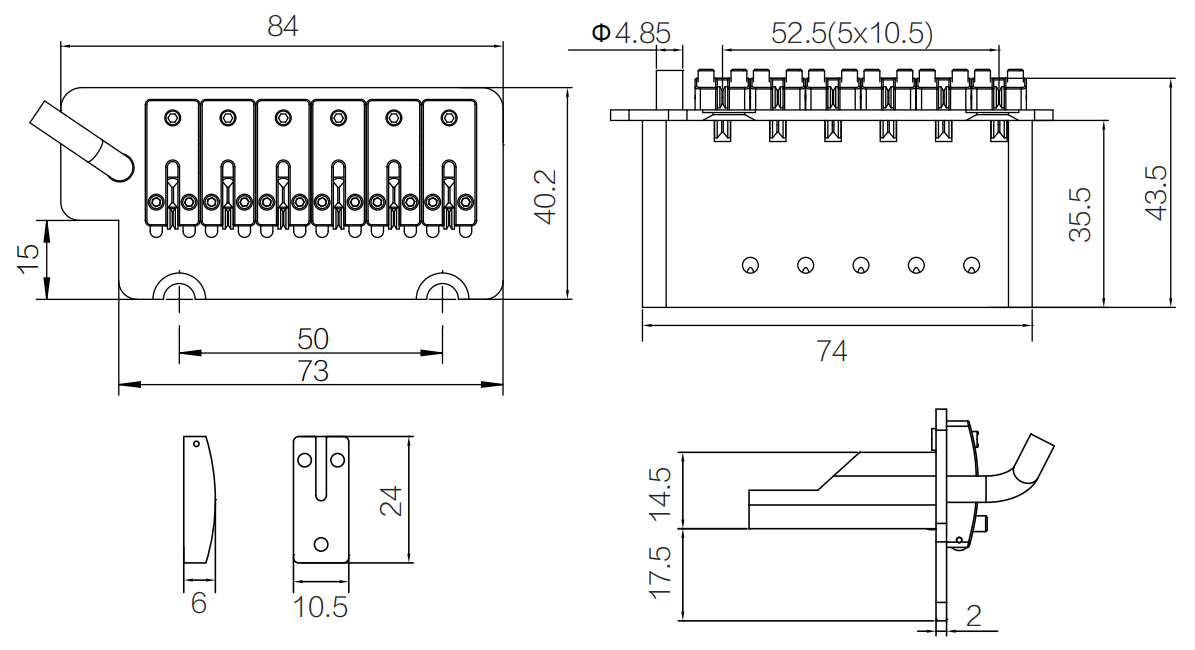

Technical drawingBG-1007-F
Description
BG-1007-F is a 6-string tremolo bridge with 10.5 mm spacing, 84 × 40.2 mm plate, 50 mm two-point mount spacing, and 35.5 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 84 mm (3.307 in)
- Plate depth 40.2 mm (1.583 in)
- Mount hole spacing 50 mm (1.969 in)
- Mount pattern Two-point pivot mount
- Saddle material Zinc alloy
- Saddle diameter 10.5 mm (0.413 in)
- Saddle height 24 mm (0.945 in)
- Overall height 43.5 mm (1.713 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Low-profile 43.5 mm overall height
- 10.5 mm wide block saddles
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
50 mm (1.969 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
