BG-1009-D

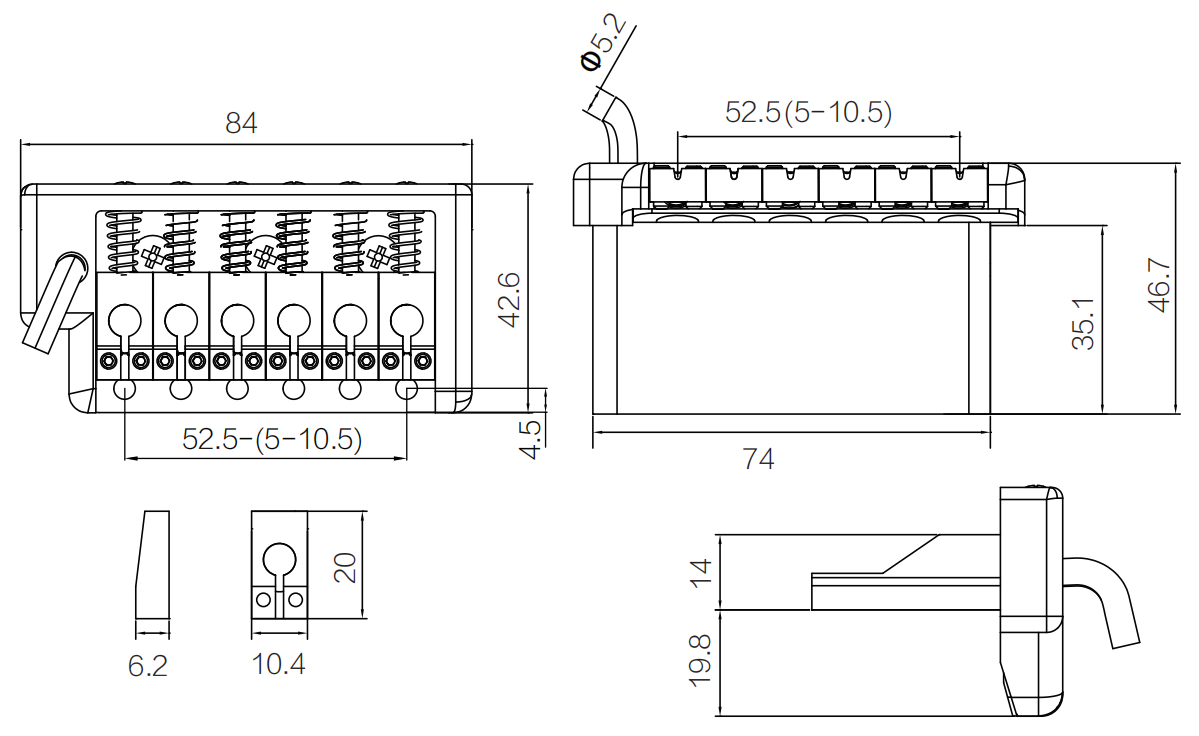

Technical drawingBG-1009-D
Description
BG-1009-D is a 6-string tremolo bridge with 10.5 mm spacing, 84 × 42.6 mm plate, 74 mm sustain block width, and 35.1 mm block height.
Tremolo bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 84 mm (3.307 in)
- Plate depth 42.6 mm (1.677 in)
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
- Saddle height 20 mm (0.787 in)
- Overall height 46.7 mm (1.839 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Modern 6-string tremolo plate
- Tremolo arm socket φ5.2 mm
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
