BG-1019A

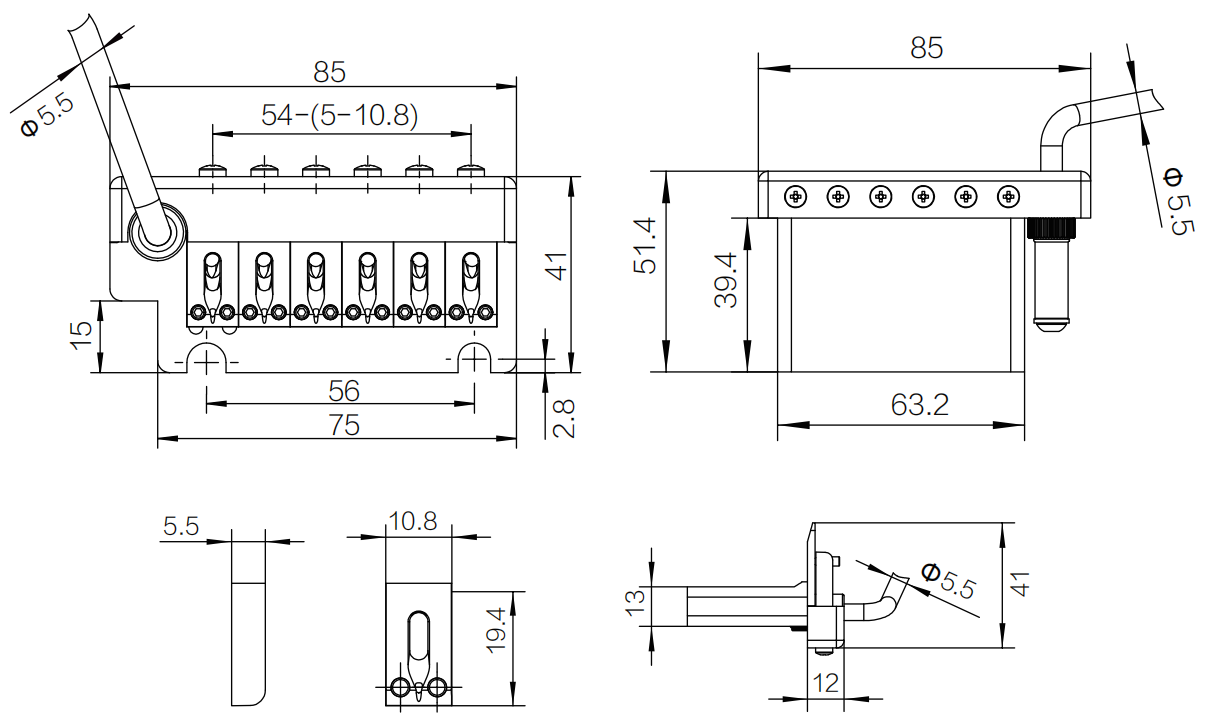

Technical drawingBG-1019A
Description
BG-1019A is a 6-string tremolo bridge with 10.8 mm spacing, 85 × 41 mm plate, 56 mm two-point mount spacing, and 39.4 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 85 mm (3.346 in)
- Plate depth 41 mm (1.614 in)
- Mount hole spacing 56 mm (2.205 in)
- Mount pattern Two-point pivot mount
- Saddle material Zinc alloy
- Saddle diameter 10.8 mm (0.425 in)
- Saddle height 19.4 mm (0.764 in)
- Overall height 51.4 mm (2.024 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Two-point synchronized tremolo
- Arm socket φ5.5 mm
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
56 mm (2.205 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
