Description

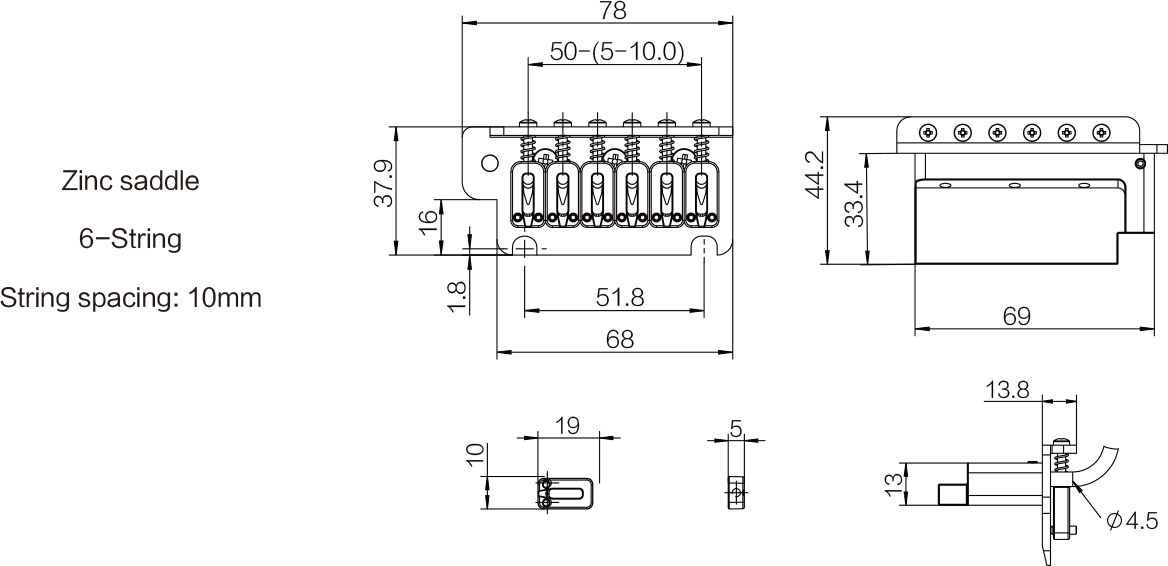

BG-1022 is a 6-string tremolo bridge with 10 mm spacing, 78 × 37.9 mm plate, 51.8 mm mount spread, and 33.4 mm block.
Tremolo bridge specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Plate width 78 mm (3.071 in)
- Plate depth 37.9 mm (1.492 in)
- Mount hole spacing 51.8 mm (2.039 in)
- Saddle material Zinc alloy
- Saddle diameter 10 mm (0.394 in)
- Hole diameter φ4.5 mm (0.177 in)
- Sustain block width 69 mm (2.717 in)
Hardware
- Sustain block height 33.4 mm (1.315 in)
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Compact import trem footprint
- Low-profile 33.4 mm block
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
51.8 mm (2.039 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
33.4 mm (1.315 in) block height; 69 mm (2.717 in) block width
Tremolo block depth sets spring tension range; verify against body cavity depth.
