Description

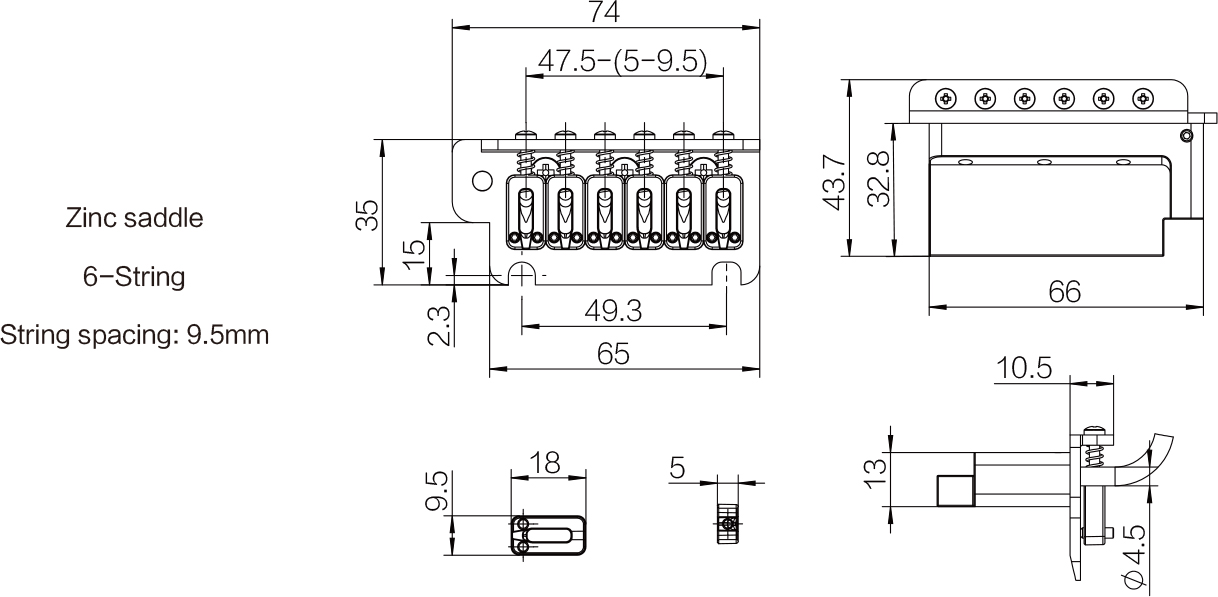

BG-1023 is a 6-string tremolo bridge with 9.5 mm tighter spacing, 74 × 35 mm plate, and 49.3 mm mount spread.

String count 6-string
String spacing 9.5 mm (0.374 in)
String spread 47.5 mm (1.87 in)
Plate width 74 mm (2.913 in)
Plate depth 35 mm (1.378 in)
Mount hole spacing 49.3 mm (1.941 in)
Saddle material Zinc alloy
Saddle diameter 9.5 mm (0.374 in)
Hole diameter φ4.5 mm (0.177 in)
Sustain block width 66 mm (2.598 in)

String spacing

9.5 mm (0.374 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

49.3 mm (1.941 in)

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

32.8 mm (1.291 in) block height; 66 mm (2.598 in) block width

Tremolo block depth sets spring tension range; verify against body cavity depth.
