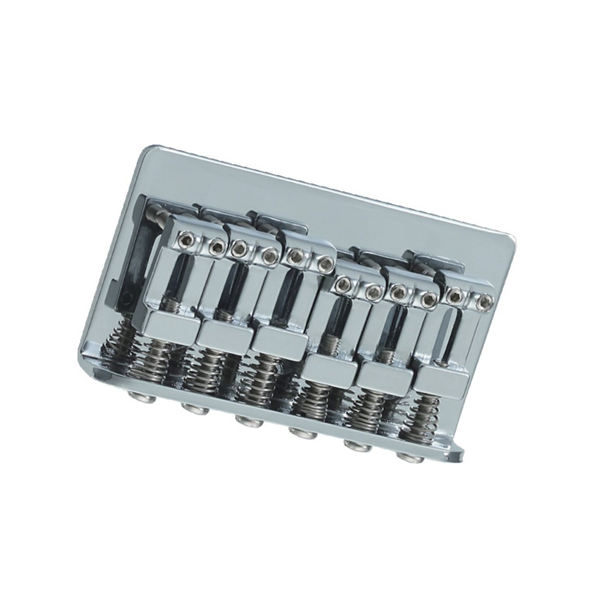

BG-2001A-E

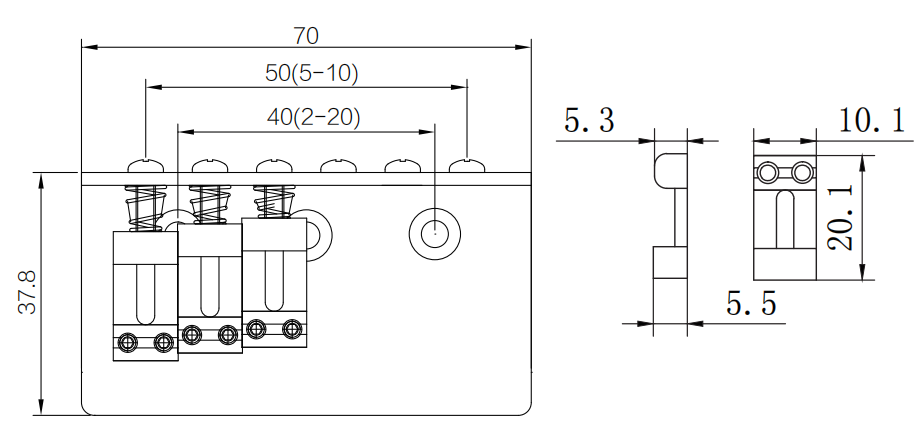

Technical drawingBG-2001A-E
Description
BG-2001A-E is a 6-string fixed guitar bridge with 10 mm string spacing (50 mm spread), 70 × 37.8 mm plate, 40 mm mount spacing, and 10.1 mm saddles.
Bridge specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Plate width 70 mm (2.756 in)
- Plate depth 37.8 mm (1.488 in)
- Mount hole spacing 40 mm (1.575 in)
- Mount pattern Two mounting holes on 20 mm pitch (40 mm outer centers)
- Saddle material Zinc alloy
- Saddle diameter 10.1 mm (0.398 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 6 individual adjustable saddles
- Two-hole top mount
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
40 mm (1.575 in)
Center-to-center distance between mounting holes on the bridge plate.
