BG-2002-D

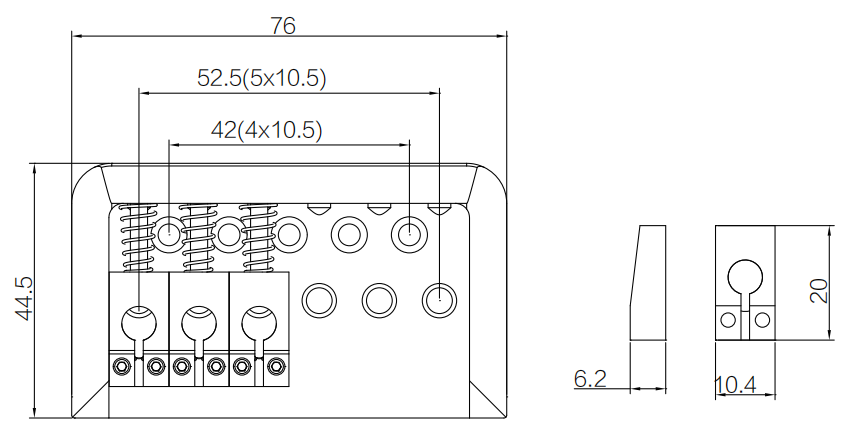

Technical drawingBG-2002-D
Description
BG-2002-D is a 6-string fixed guitar bridge with 10.5 mm string spacing (52.5 mm spread), 76 × 44.5 mm plate, and five-hole mount on 42 mm spread.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 76 mm (2.992 in)
- Plate depth 44.5 mm (1.752 in)
- Mount hole spacing 42 mm (1.654 in)
- Mount pattern Five mounting holes on 10.5 mm pitch (42 mm outer centers)
- Saddle material Zinc alloy
- Saddle diameter 10.4 mm (0.409 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 6 individual saddles
- Five-hole string-through mount row
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
42 mm (1.654 in)
Center-to-center distance between mounting holes on the bridge plate.
