Non tremolo guitar bridegs
Request a quote → BG-2001C-A
BG-2001C-A

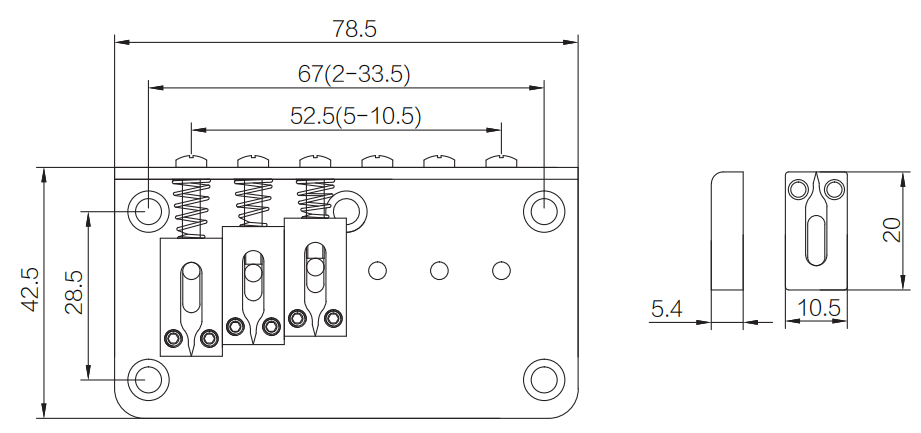

Technical drawingBG-2001C-A
Description
BG-2001C-A is a 6-string fixed guitar bridge with 10.5 mm string spacing (52.5 mm spread), 78.5 × 42.5 mm plate, and four-corner mount (67 × 28.5 mm).
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 78.5 mm (3.091 in)
- Plate depth 42.5 mm (1.673 in)
- Mount pattern Four corner holes on 67 mm × 28.5 mm centers
- Saddle material Zinc alloy
- Saddle diameter 10.5 mm (0.413 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 6 individual saddles with intonation screws
- Four-corner mount pattern
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Four corner holes on 67 mm × 28.5 mm centers
Center-to-center distance between mounting holes on the bridge plate.
