Non tremolo guitar bridegs
Request a quote → BG-3001
BG-3001
BG-3001
Loading 3D model…
Loading 3D model…
Description

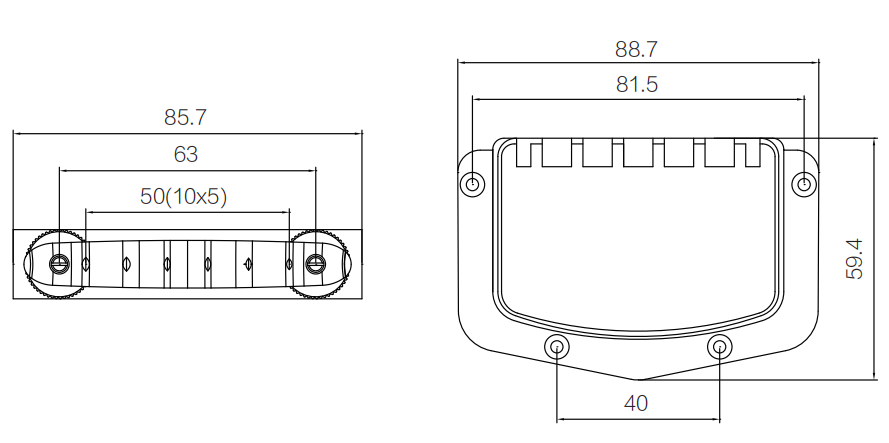

BG-3001 pairs a 6-string Tune-o-matic bridge (10 mm spacing, 63 mm post spacing) with a matching stop tailpiece for LP-style builds.
Bridge specs
- String count 6-string
- String spacing 10 mm (0.394 in)
- String spread 50 mm (1.969 in)
- Plate width 85.7 mm (3.374 in)
- Plate depth 49.7 mm (1.957 in)
- Post spacing 63 mm (2.48 in)
- Saddle material Zinc alloy
Tailpiece specs
- Plate width 88.7 mm (3.492 in)
- Plate depth 59.4 mm (2.339 in)
- Mount hole spacing 81.5 mm (3.209 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Bridge + tailpiece kit
- 10 mm string spacing
- 63 mm bridge post spacing
About measurements
- String spacing
-
10 mm (0.394 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Center-to-center distance between mounting holes on the bridge plate.
