HEADLESS BRIDGES
Request a quote → BG-3004
BG-3004
BG-3004
Loading 3D model…
Loading 3D model…
Description

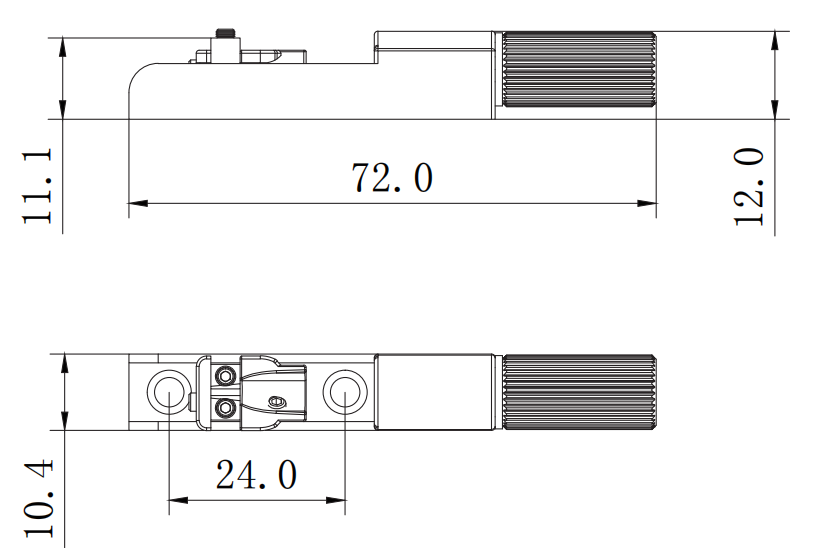

BG-3004 is a headless 6-string bridge/tuner module set with 10.4 mm spacing, 72 mm module length, and 24 mm pin spacing.
Module specs
- Configuration Headless bridge/tuner module
- Module length 72 mm (2.835 in)
- Module width 10.4 mm (0.409 in)
- Body height 12 mm (0.472 in)
- Pin spacing 24 mm (0.945 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Headless modular layout
- Knurled tuner barrel per string
About measurements
- String spacing
-
10.4 mm (0.409 in)
Center-to-center distance between adjacent strings at the bridge.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
