Non tremolo guitar bridegs
Request a quote → BG-3003
BG-3003
BG-3003
Loading 3D model…
Loading 3D model…
Description

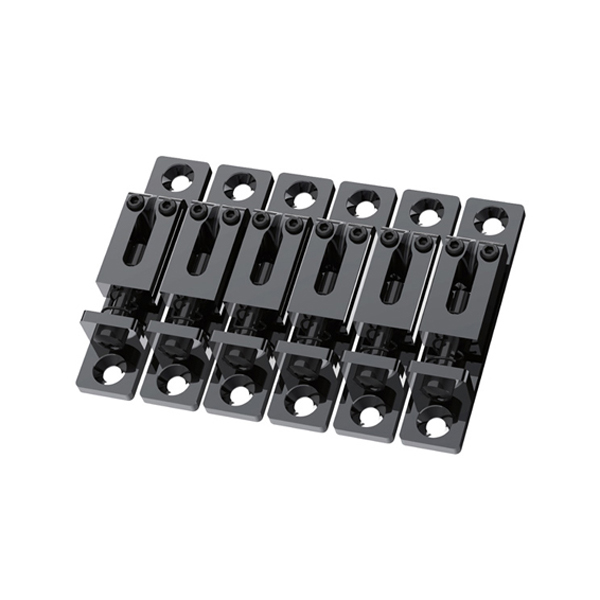

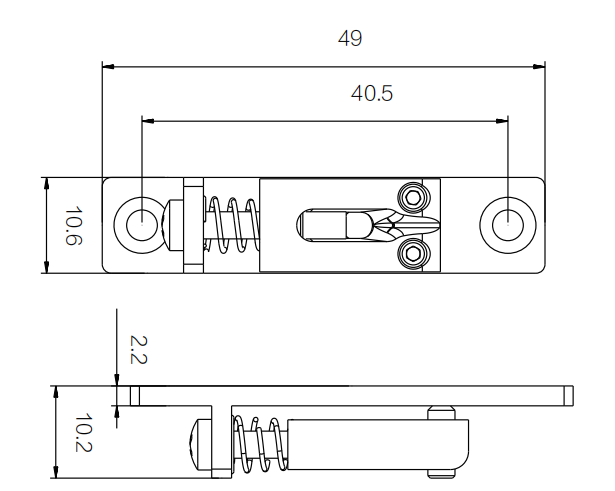

BG-3003 is a compact string retainer module, 49 × 10.6 mm footprint with 40.5 mm pin spacing — verify fit on your headstock or bridge layout.
Bridge specs
- Configuration Individual-string module
- Module length 49 mm (1.929 in)
- Module width 10.6 mm (0.417 in)
- Body height 10.2 mm (0.402 in)
- Mount pin spacing 40.5 mm (1.594 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Spring-loaded retainer
- Finish More colors — see matching swatches
Features
- Low-profile retainer block
- 40.5 mm mounting pin spacing
About measurements
- Mount hole spacing
-
40.5 mm (1.594 in)
Center-to-center distance between mounting holes on the bridge plate.
- Module layout
-
One bridge module per string; overall spacing is set by body routing.
