BG-5003
BG-5003
Loading 3D model…
Loading 3D model…
Description

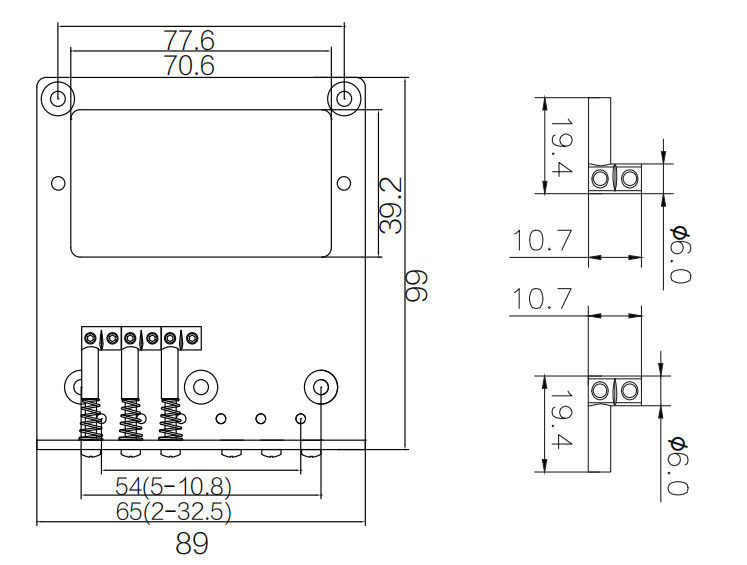

BG-5003 is a humbucker Tele bridge with 3 barrel saddles, 10.8 mm spacing (54 mm spread), and an 89 × 99 mm plate.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 89 mm (3.504 in)
- Plate depth 99 mm (3.898 in)
- Mount hole spacing 65 mm (2.559 in)
- Mount pattern Top mount 77.6 mm; humbucker cutout 70.6 × 39.2 mm
- Saddle material Steel
- Saddle diameter 6 mm (0.236 in)
- Saddle height 10.7 mm (0.421 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Humbucker rout Tele plate
- 3-barrel saddle layout
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
65 mm (2.559 in)
Center-to-center distance between mounting holes on the bridge plate.
