Description

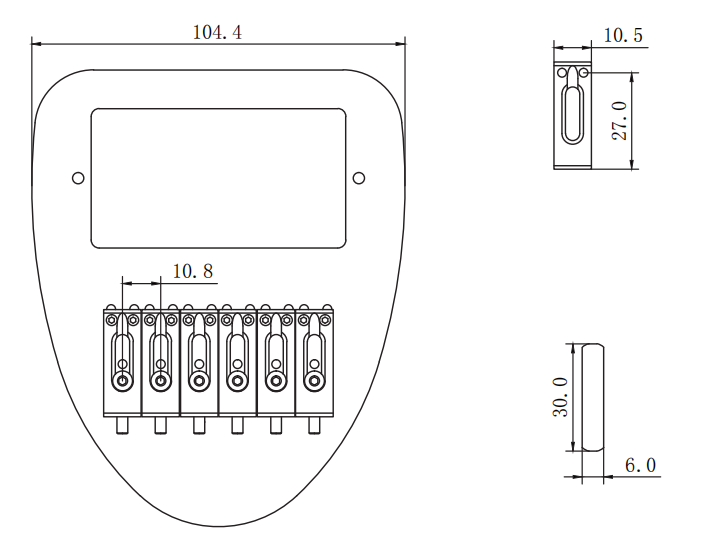

BG-5004 is a shield-shape humbucker bridge plate with 6 block saddles, 10.8 mm spacing, and 104.4 mm maximum width.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 104.4 mm (4.11 in)
- Plate depth 30 mm (1.181 in)
- Saddle material Zinc alloy
- Saddle diameter 10.5 mm (0.413 in)
- Saddle height 27 mm (1.063 in)
- Overall height 6 mm (0.236 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Curved shield plate
- 6 block saddles with 10.5 mm width
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
