BG-5005
BG-5005
Loading 3D model…
Loading 3D model…
Description

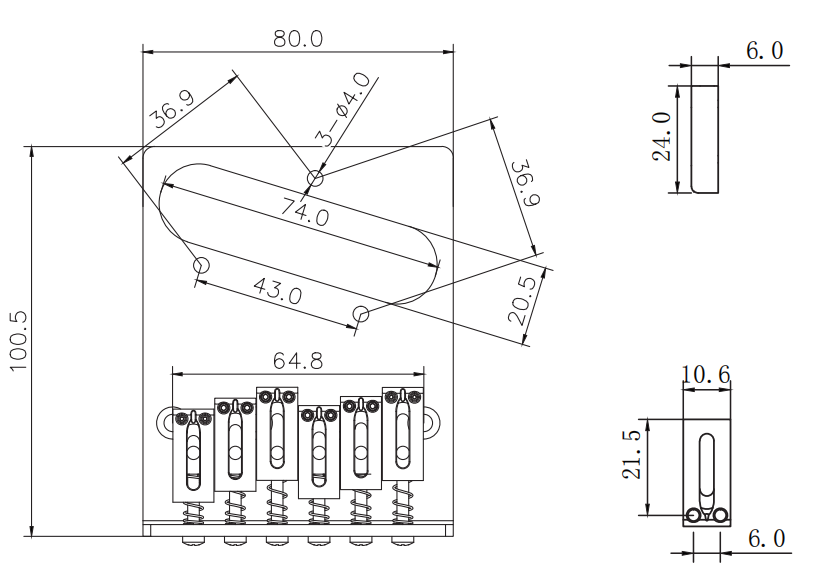

BG-5005 is a 6-saddle Tele bridge plate with 10.8 mm spacing (64.8 mm saddle row), 80 × 100.5 mm footprint, and slanted pickup rout.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 64.8 mm (2.551 in)
- Plate width 80 mm (3.15 in)
- Plate depth 100.5 mm (3.957 in)
- Mount pattern Pickup cutout 74 × 20.5 mm; 3× φ4 mm mount holes
- Saddle material Zinc alloy
- Saddle diameter 10.6 mm (0.417 in)
- Saddle height 21.5 mm (0.846 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 6-saddle Tele ashtray style
- Raised intonation wall
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Pickup cutout 74 × 20.5 mm; 3× φ4 mm mount holes
Center-to-center distance between mounting holes on the bridge plate.
