Description

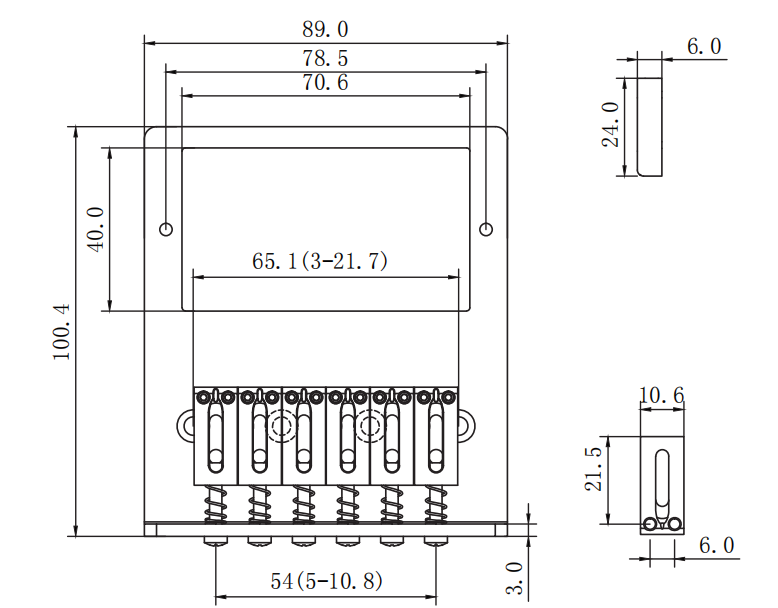

BG-5006 is a 6-saddle humbucker Tele bridge with 10.8 mm spacing (54 mm spread), 89 × 100.4 mm plate, and 70.6 × 40 mm pickup cutout.
Bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 89 mm (3.504 in)
- Plate depth 100.4 mm (3.953 in)
- Mount hole spacing 78.5 mm (3.091 in)
- Mount pattern Side mount holes 78.5 mm; rear lip 3 mm
- Saddle material Zinc alloy
- Saddle diameter 10.6 mm (0.417 in)
- Saddle height 21.5 mm (0.846 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Large humbucker Tele plate
- Block saddles
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
78.5 mm (3.091 in)
Center-to-center distance between mounting holes on the bridge plate.
