BANJO PARTS
Request a quote → BJ-228
BJ-228
BJ-228
Loading 3D model…
Loading 3D model…
Description

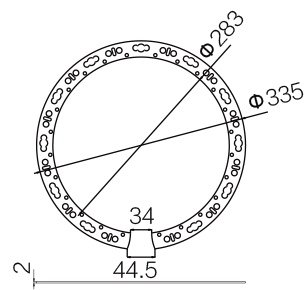

Banjo hoop ring Φ335 mm outer / Φ283 mm inner with 44.5 × 34 mm mounting lug and 2 mm thickness.
Banjo hardware specs
- Outer diameter φ335 mm
- Inner diameter φ283 mm
- Overall width 44.5 mm (1.752 in)
- Body height 34 mm (1.339 in)
- Reference Lug 44.5 × 34 mm; ring thickness 2 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Integrated perimeter lug
- Thin 2 mm ring section
About measurements
- Mount hole spacing
-
Lug 44.5 × 34 mm; ring thickness 2 mm
Center-to-center distance between mounting holes on the bridge plate.
