BK-10
BK-10
Loading 3D model…
Loading 3D model…
Description

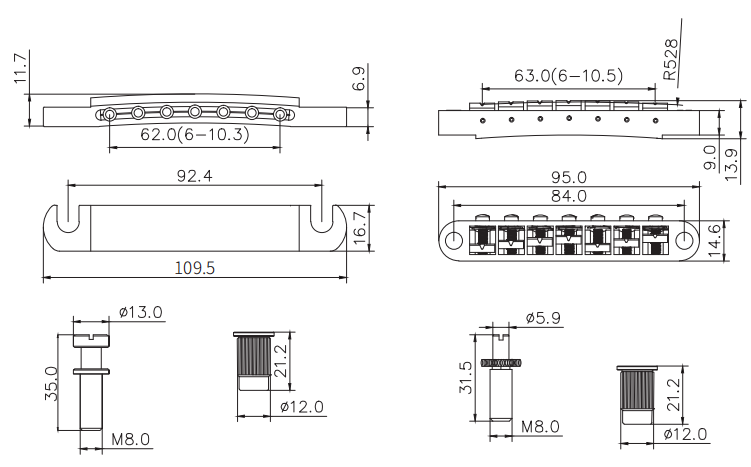

BK-10 is a wide-post Tune-o-matic and stopbar set with 10.5 mm bridge spacing (63 mm spread), R528 radius, 84 mm bridge posts, and 92.4 mm tailpiece spacing.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 63 mm (2.48 in)
- Plate width 95 mm (3.74 in)
- Plate depth 14.6 mm (0.575 in)
- Mount pattern Radius R528 mm (~20.75 in)
- Post spacing 84 mm (3.307 in)
Tailpiece specs
- Plate width 109.5 mm (4.311 in)
- Plate depth 16.7 mm (0.657 in)
- Mount hole spacing 92.4 mm (3.638 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Wide 84 mm bridge post spacing
- Extended tailpiece
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Radius R528 mm (~20.75 in)
Center-to-center distance between mounting holes on the bridge plate.
