BK-13
BK-13
Loading 3D model…
Loading 3D model…
Description

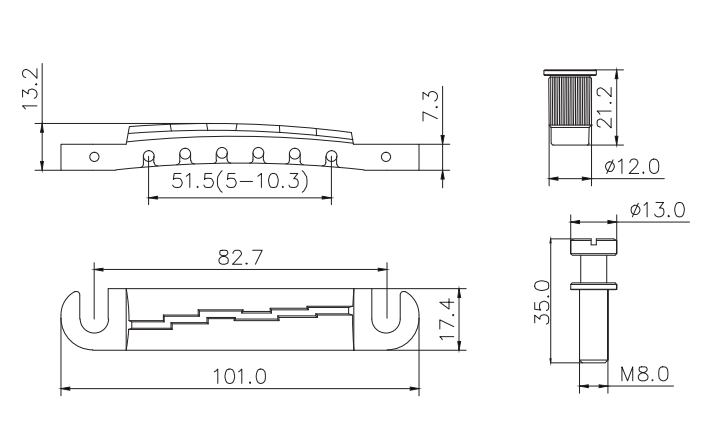

BK-13 is a compensated wraparound bridge with 10.3 mm spacing (51.5 mm spread) and 82.7 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.3 mm (0.406 in)
- String spread 51.5 mm (2.028 in)
- Plate width 101 mm (3.976 in)
- Plate depth 17.4 mm (0.685 in)
- Mount hole spacing 82.7 mm (3.256 in)
- Saddle material Zinc alloy
- Overall height 13.2 mm (0.52 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Lightning-bar compensation
- String-through front loading
About measurements
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
82.7 mm (3.256 in)
Center-to-center distance between mounting holes on the bridge plate.
