Description

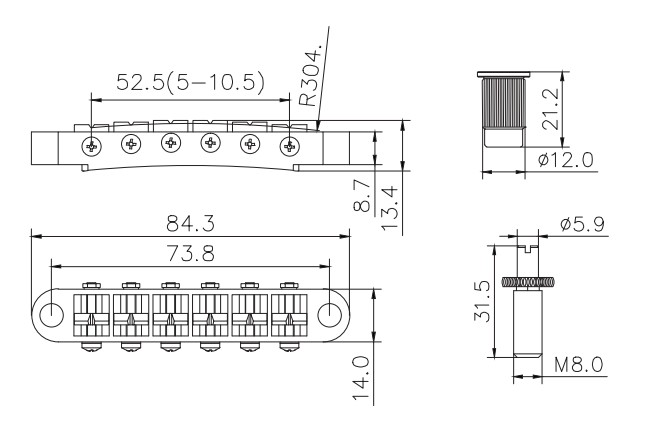

BK-15 is a Tune-o-matic bridge with 10.5 mm spacing (52.5 mm spread), R304 radius, and 73.8 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 84.3 mm (3.319 in)
- Plate depth 14 mm (0.551 in)
- Mount pattern Radius R304 mm (~12 in); M8 thumbwheel post
- Post spacing 73.8 mm (2.906 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 12 in radius TOM
- Individual notched saddles
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Radius R304 mm (~12 in); M8 thumbwheel post
Center-to-center distance between mounting holes on the bridge plate.
