Description

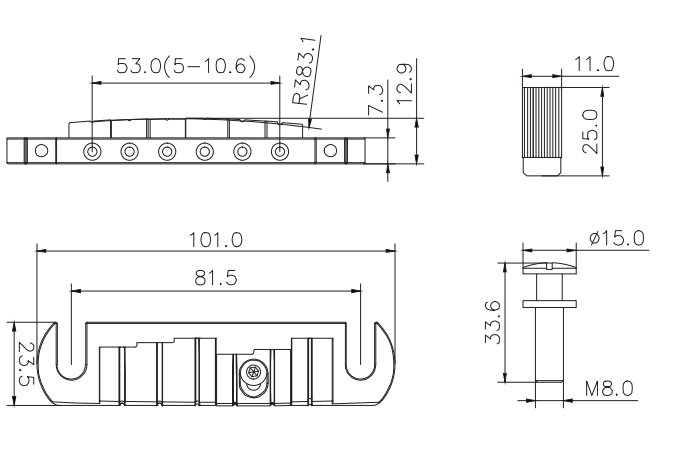

BK-16 is a radiused wraparound bridge with 10.6 mm spacing (53 mm spread), R383.1 radius, and 81.5 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.6 mm (0.417 in)
- String spread 53 mm (2.087 in)
- Plate width 101 mm (3.976 in)
- Plate depth 23.5 mm (0.925 in)
- Mount hole spacing 81.5 mm (3.209 in)
- Mount pattern Radius R383.1 mm (~15 in); M8 stud
- Saddle material Zinc alloy
- Overall height 12.9 mm (0.508 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 15 in radius wraparound
- Rear intonation screws
About measurements
- String spacing
-
10.6 mm (0.417 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
81.5 mm (3.209 in)
Center-to-center distance between mounting holes on the bridge plate.
