BK-17
BK-17
Loading 3D model…
Loading 3D model…
Description

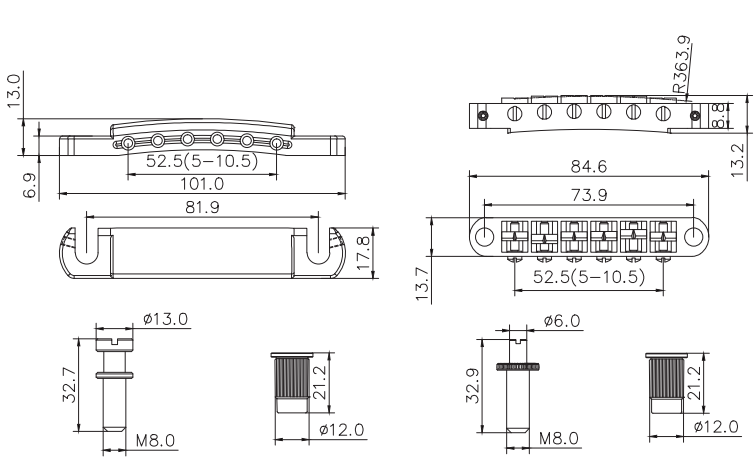

BK-17 is a Tune-o-matic and stopbar set with 10.5 mm spacing (52.5 mm spread), R363.9 bridge radius, 73.9 mm bridge posts, and 81.9 mm tailpiece spacing.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.5 mm (2.067 in)
- Plate width 84.6 mm (3.331 in)
- Plate depth 13.7 mm (0.539 in)
- Mount pattern Radius R363.9 mm (~14.3 in)
- Post spacing 73.9 mm (2.909 in)
Tailpiece specs
- Plate width 101 mm (3.976 in)
- Plate depth 17.8 mm (0.701 in)
- Mount hole spacing 81.9 mm (3.224 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 14.3 in radius bridge
- Matched 10.5 mm spacing
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Radius R363.9 mm (~14.3 in)
Center-to-center distance between mounting holes on the bridge plate.
