Description

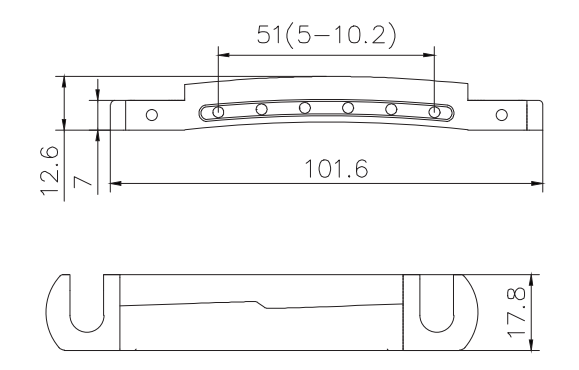

BK-18 is an arched wraparound bridge with 10.2 mm spacing (51 mm spread), 101.6 mm width, and open U-slot mounts.
Bridge specs
- String count 6-string
- String spacing 10.2 mm (0.402 in)
- String spread 51 mm (2.008 in)
- Plate width 101.6 mm (4 in)
- Plate depth 17.8 mm (0.701 in)
- Saddle material Zinc alloy
- Overall height 12.6 mm (0.496 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Arched compensated top
- 7.0 mm base height
About measurements
- String spacing
-
10.2 mm (0.402 in)
Center-to-center distance between adjacent strings at the bridge.
