BK-19
BK-19
Loading 3D model…
Loading 3D model…
Description

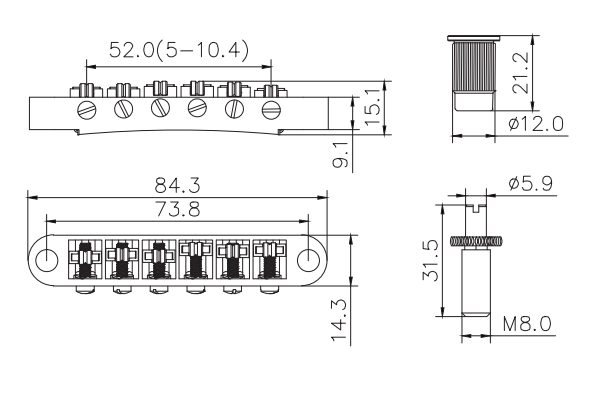

BK-19 is a Tune-o-matic bridge with 10.4 mm spacing (52 mm spread) and 73.8 mm M8 post spacing.
Bridge specs
- String count 6-string
- String spacing 10.4 mm (0.409 in)
- String spread 52 mm (2.047 in)
- Plate width 84.3 mm (3.319 in)
- Plate depth 14.3 mm (0.563 in)
- Mount pattern M8 post with φ12 mm bushing
- Post spacing 73.8 mm (2.906 in)
- Saddle material Zinc alloy
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Standard metric TOM
- Height 9.1–15.1 mm arched base
About measurements
- String spacing
-
10.4 mm (0.409 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
M8 post with φ12 mm bushing
Center-to-center distance between mounting holes on the bridge plate.
