BK-2
BK-2
Loading 3D model…
Loading 3D model…
Description

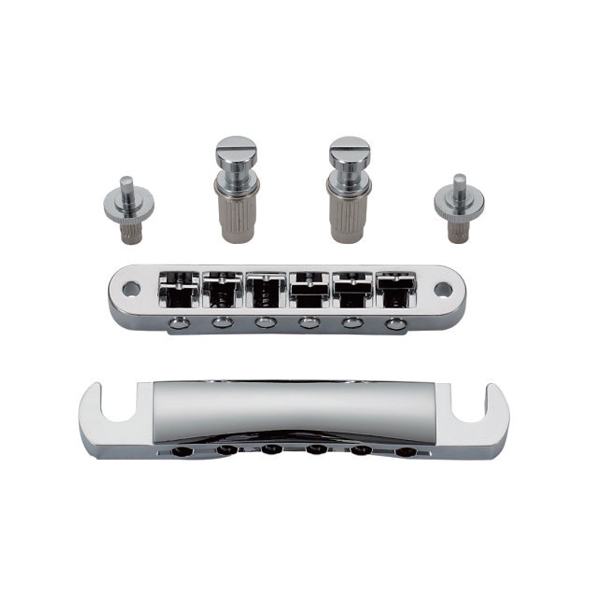

BK-2 is a Tune-o-matic and stopbar set with 10.3 mm bridge spacing (51.5 mm spread), R362.7 bridge radius, M5 bridge posts, and M8 tailpiece studs.

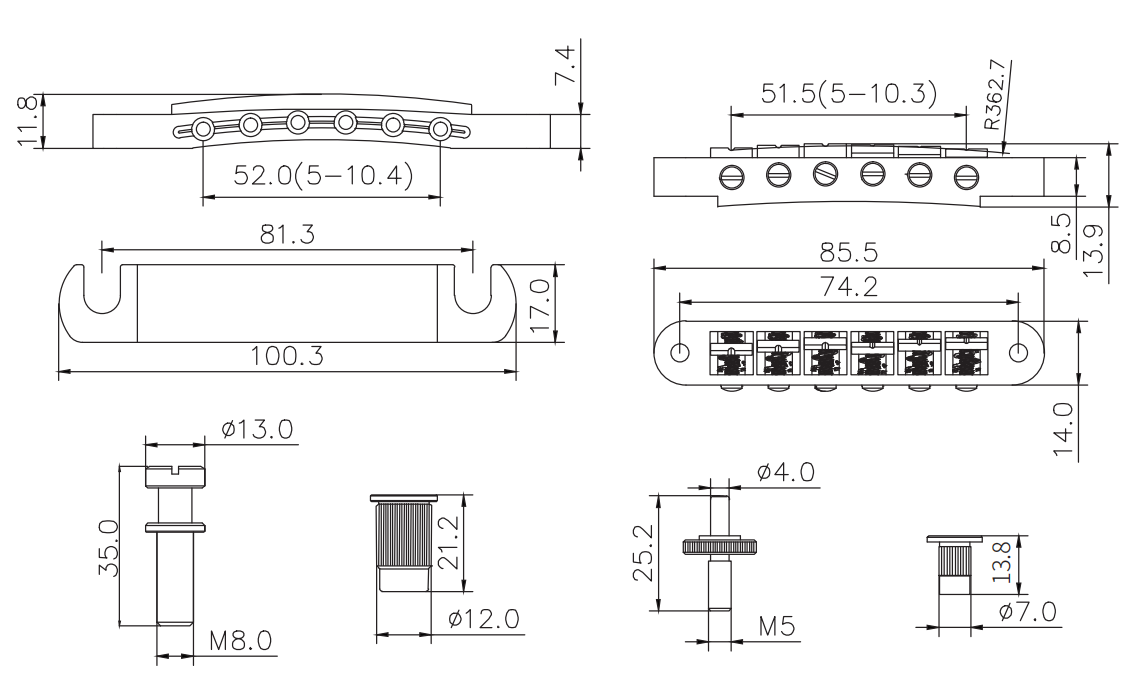

Bridge specs
- String count 6-string
- String spacing 10.3 mm (0.406 in)
- String spread 51.5 mm (2.028 in)
- Plate width 85.5 mm (3.366 in)
- Plate depth 14 mm (0.551 in)
- Mount pattern Radius R362.7 (~14 in); M5 post, φ7 × 13.8 mm bushing
- Post spacing 74.2 mm (2.921 in)
Tailpiece specs
- Plate width 100.3 mm (3.949 in)
- Plate depth 17 mm (0.669 in)
- Mount hole spacing 81.3 mm (3.201 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 14 in radius bridge
- Mixed M5 bridge / M8 tailpiece hardware
About measurements
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Radius R362.7 (~14 in); M5 post, φ7 × 13.8 mm bushing
Center-to-center distance between mounting holes on the bridge plate.
