Description

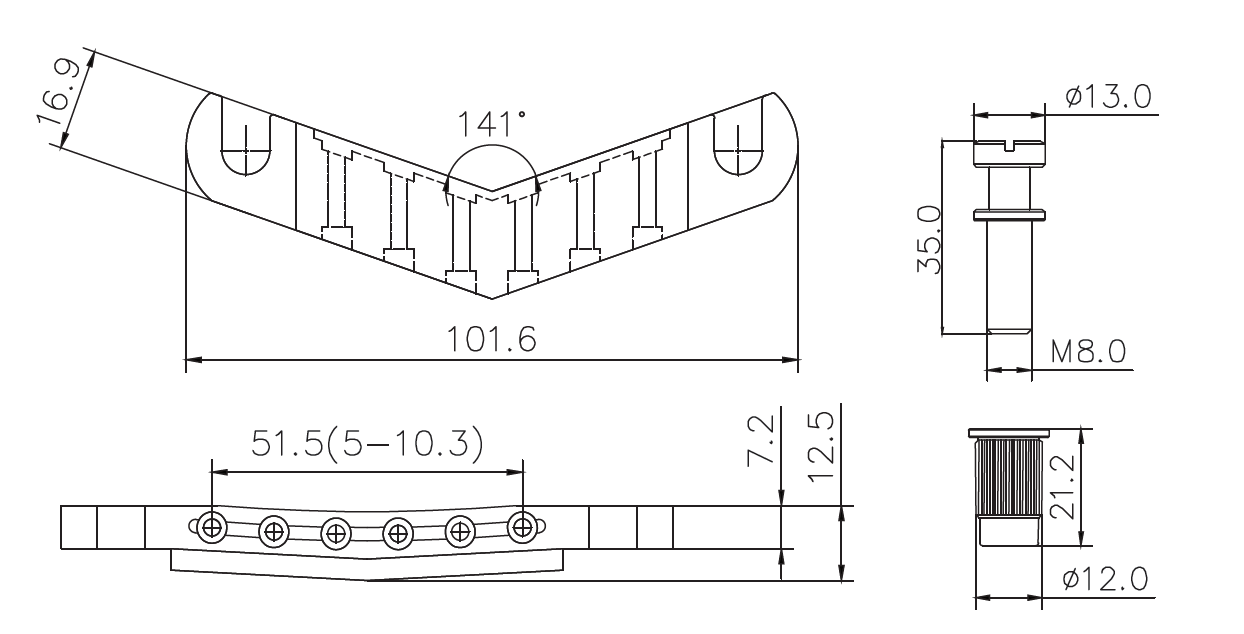

BK-21 is a Flying-V style tailpiece with 10.3 mm spacing (51.5 mm spread), 101.6 mm tip-to-tip width, and M8 studs.
Tailpiece specs
- String count 6-string
- String spacing 10.3 mm (0.406 in)
- String spread 51.5 mm (2.028 in)
- Overall length 12.5 mm (0.492 in)
- Overall width 101.6 mm (4 in)
- Mount pattern 141° V-angle; M8 stud, φ12 mm bushing
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- V-shape tailpiece
- Top-loading string holes
About measurements
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
141° V-angle; M8 stud, φ12 mm bushing
Center-to-center distance between mounting holes on the bridge plate.
- String spacing
-
10.3 mm (0.406 in)
Center-to-center distance between adjacent strings at the tailpiece.
