Description

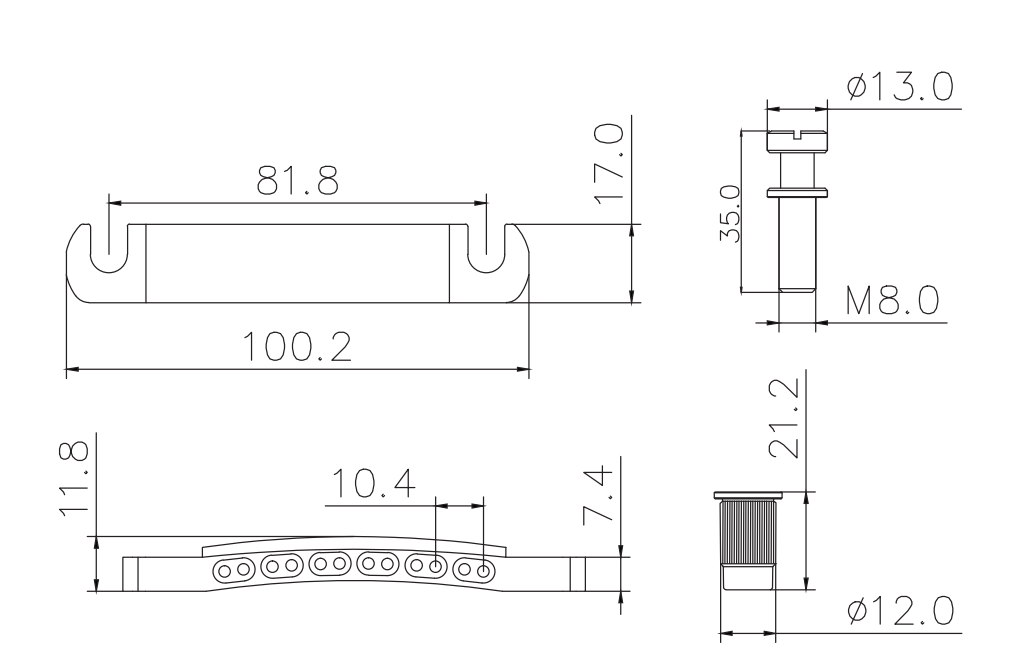

BK-22 is a roller-saddle wraparound bridge with 10.4 mm spacing (52 mm spread) and 81.8 mm post spacing.
Bridge specs
- String count 6-string
- String spacing 10.4 mm (0.409 in)
- String spread 52 mm (2.047 in)
- Plate width 100.2 mm (3.945 in)
- Plate depth 17 mm (0.669 in)
- Mount hole spacing 81.8 mm (3.22 in)
- Saddle material Zinc alloy
- Overall height 11.8 mm (0.465 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Roller saddles
- M8 stud mount
About measurements
- String spacing
-
10.4 mm (0.409 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
81.8 mm (3.22 in)
Center-to-center distance between mounting holes on the bridge plate.
