BK-24

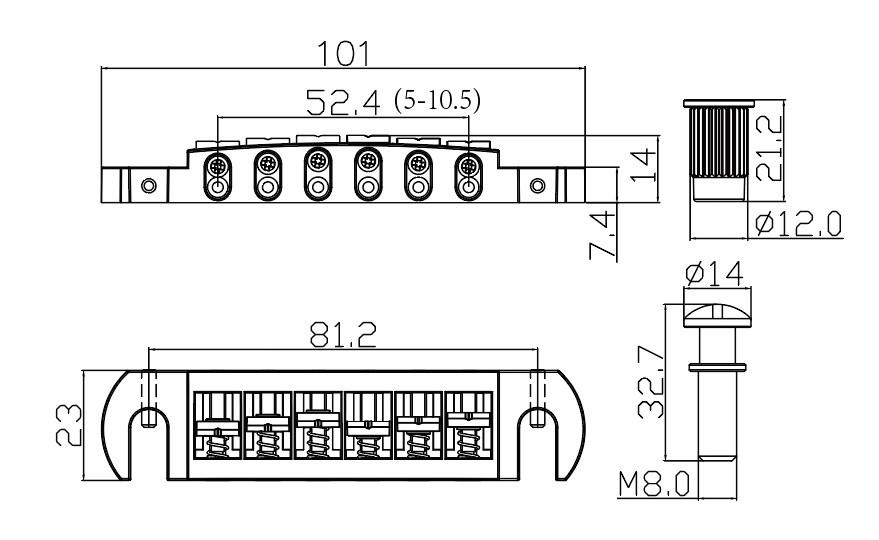

Technical drawingBK-24
Description
BK-24 is a Tune-o-matic bridge with roller saddles, 10.5 mm spacing (52.4 mm spread), 81.2 mm post spacing, and 101 × 23 mm body.
Bridge specs
- String count 6-string
- String spacing 10.5 mm (0.413 in)
- String spread 52.4 mm (2.063 in)
- Plate width 101 mm (3.976 in)
- Plate depth 23 mm (0.906 in)
- Mount pattern Roller saddles; M8 stud φ14 mm cap
- Post spacing 81.2 mm (3.197 in)
- Saddle material Zinc alloy
- Overall height 14 mm (0.551 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Roller saddle TOM
- Wide 101 mm bridge body
About measurements
- String spacing
-
10.5 mm (0.413 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Roller saddles; M8 stud φ14 mm cap
Center-to-center distance between mounting holes on the bridge plate.
